Sherline Lathe P/N 1165 Rotary Table 8mm Collet Fixture
Roll over image to zoom in Click on image to zoom
Sherline Lathe P/N 1165 Rotary Table 8mm Collet Fixture

Sherline Lathe P/N 1165 Rotary Table 8mm Collet Fixture

Sherline
Price:
$314.00
Stock:
In stock

Description

About the Rotary Table Collet Adapters

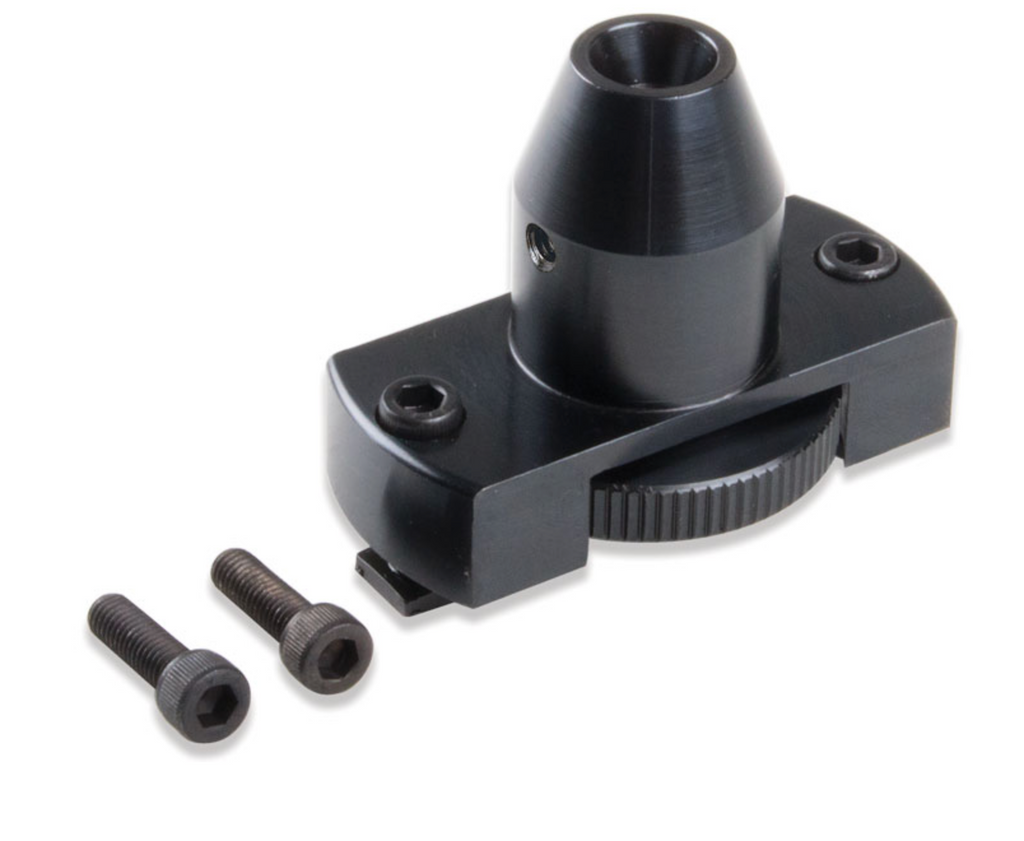

The collet fixture was designed to be mounted on the rotary table’s surface or the mill table. A knurled ring allows 8.0 mm collets to be pulled into the taper and closed without using a drawbolt from the back. This is particularly useful for clockmakers for gear cutting on a gear blank that has a pinion shaft attached that can be held in a collet. A bushing is provided that fits into the center hole of the rotary table and helps center the fixture on center. T-nuts and attaching screws are also provided for clamping the fixture in place in the rotary table or mill table T-slots.

WW or 8.0 mm collets vary somewhat in size depending on the manufacturer. This adapter holds those collets made by manufacturers other than Sherline, who produce a collet with a .314-.315 body size and .275-40 thread, which we refer to as 8.0 mm collets. Other common “WW” collets, including those manufactured by Sherline, have a body size of .312-.313, which we refer to as WW collets.  If you are using a brand of collets other than Sherline, measure the body diameter with a micrometer before deciding which collet fixture to order. If you are using Sherline collets, order the P/N 1164 fixture.... NOT this one .

Please be sure this is the one you need !
