Criterion CB-1500B 1.5" Precision Micro-Adjustable Finish Boring Head USA Made 0.050" - 0.750" Range


Price:
Sale price$442.00
Stock:
In stock

Description

Criterion CB-1500B 1.5" Precision  Micro-Adjustable Finish Boring Head USA Made 0.050" - 0.750" Range

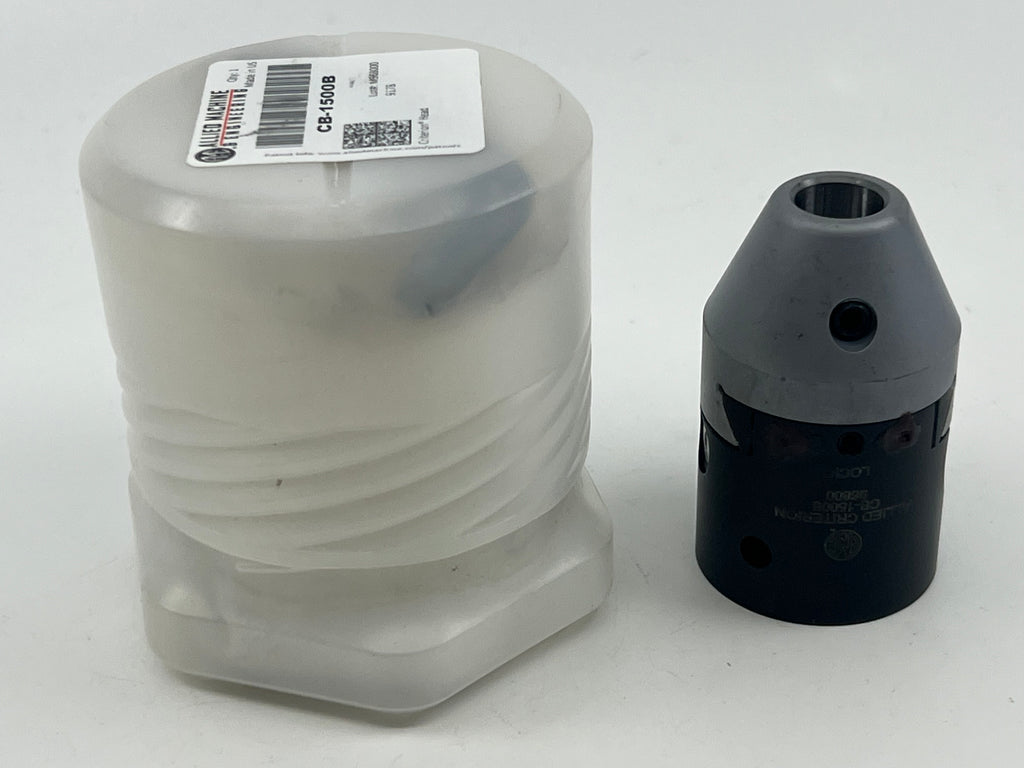

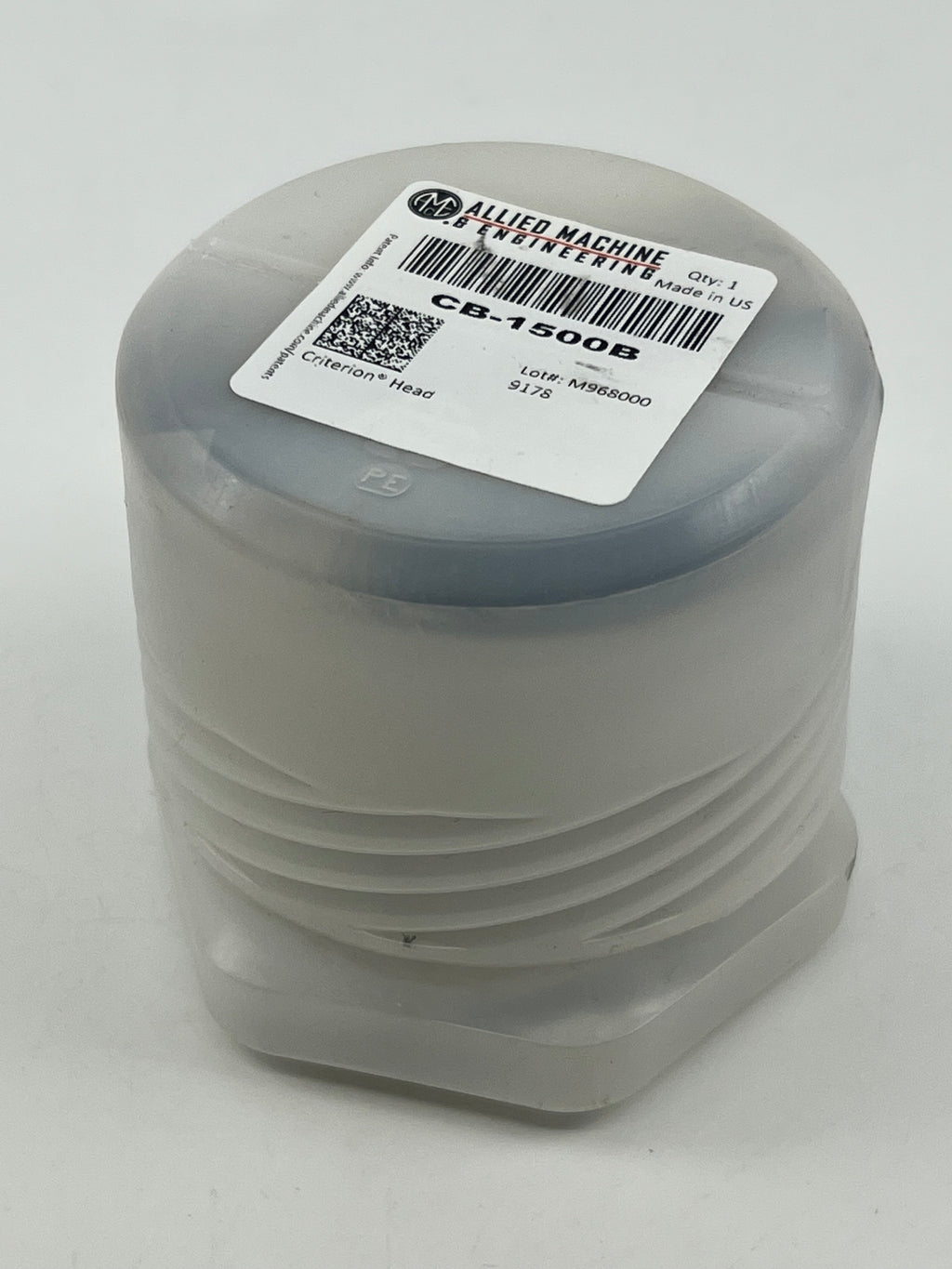

+Comes covered in a light coating of protective wax as can be seen in the photos
+IMPORTANT: Wax covered gib screws ( as seen in the photos) are factory set and should not be removed. Adjustment of these screws will cause performance issues.
Key Specifications & Features
Body Diameter: 1-1/2 inches
Bore Diameter Capacity: 0.050 to 0.750 inches
Connection Thread: 7/8"-20 threaded back mount for interchangeable modular shanks (such as CAT, BT, R8, Straight or HSK )
Max bar diameter: 0.500"
Adjustment Resolution: Direct dial readout with 0.001 inch (0.20 mm) adjustment on diameter

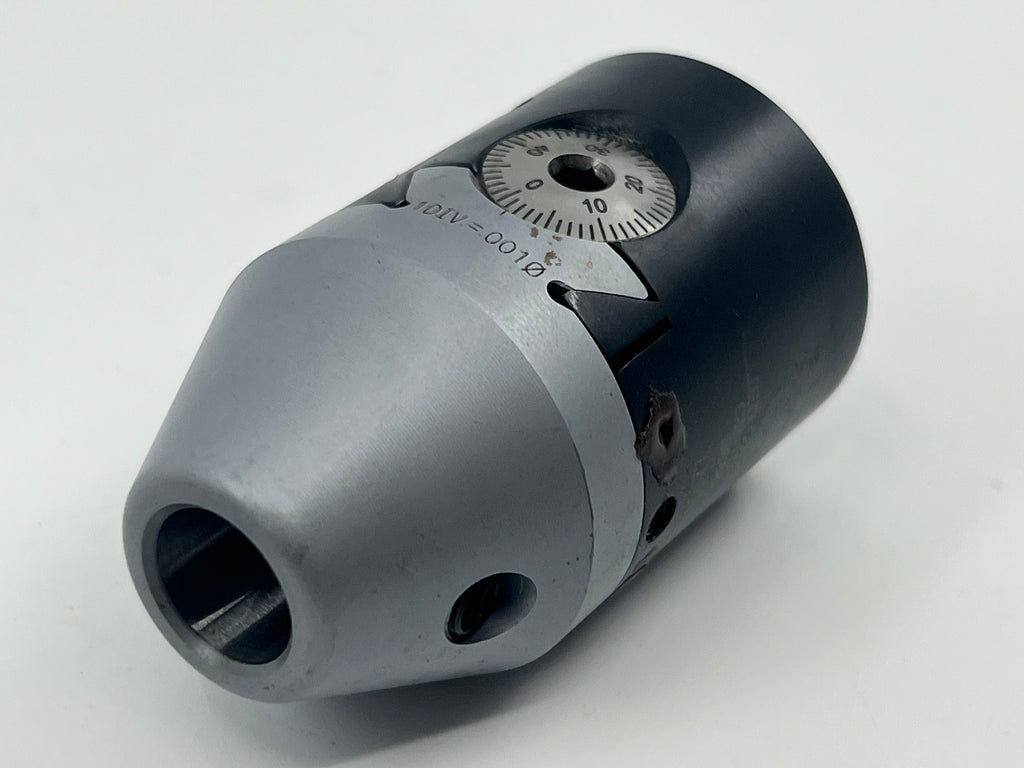

Design: Features a direct-reading adjustment dial screw and wide sliding bearing surface for enhanced rigidity and centering accuracy

Application: Designed for precision internal finish boring and tight-tolerance machining
